PCB間隔柱

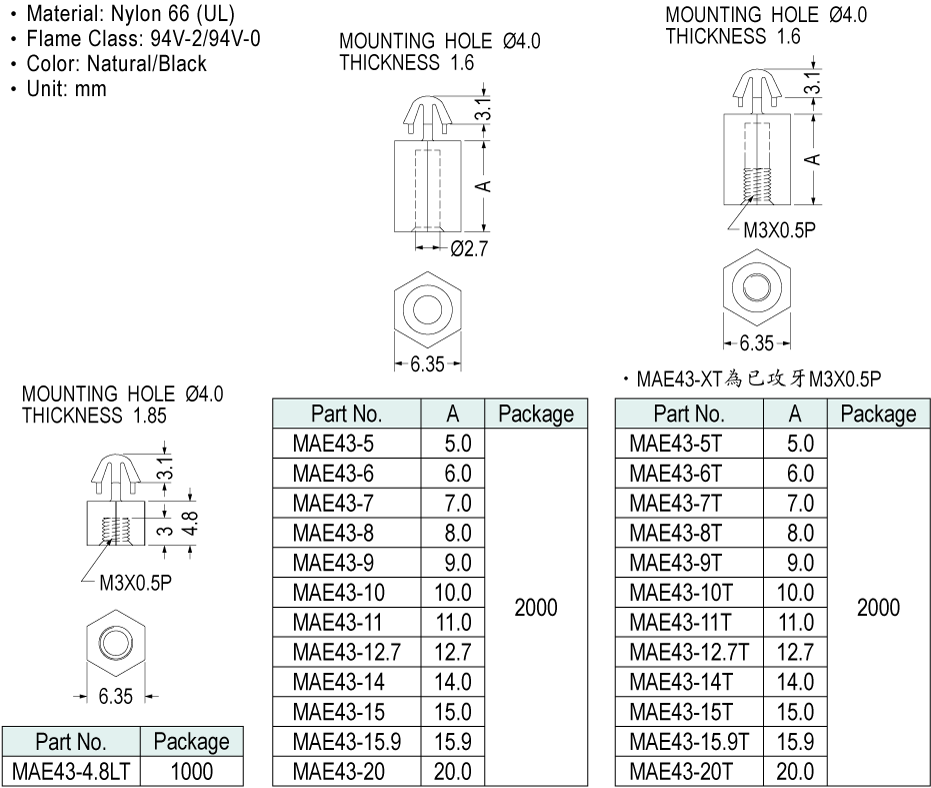

MAE43/MAE43-xxT系列 PCB Spacer 螺絲固定

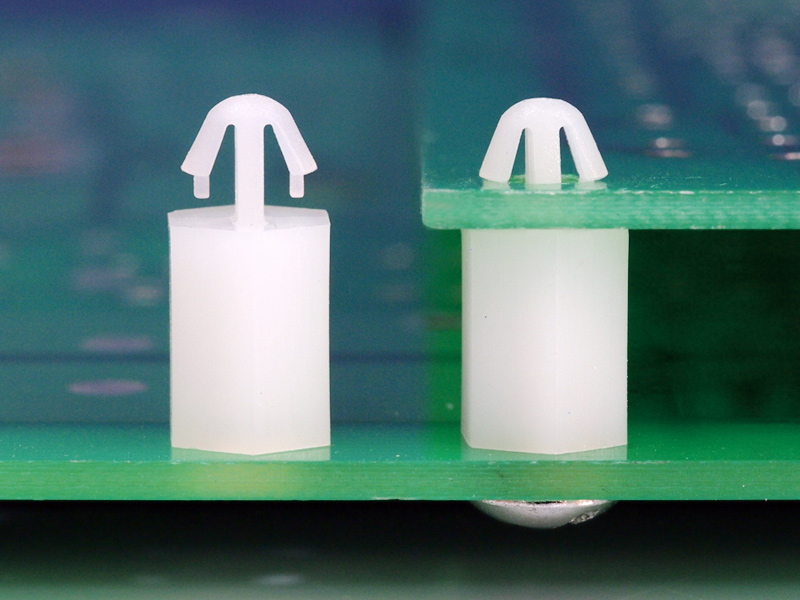

PC板端直接壓入固定，另一端可配合M3螺絲或自攻螺絲固定。
產品介紹
規格 25
| 料號 | 材質 | 防火等級 | 顏色 | 包裝量 |
|---|---|---|---|---|
| MAE43-4.8LT | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 1000 |
| MAE43-5 | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-6 | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-7 | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-8 | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-9 | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-10 | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-11 | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-12.7 | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-14 | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-15 | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-15.9 | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-20 | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-5T | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-6T | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-7T | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-8T | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-9T | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-10T | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-11T | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-12.7T | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-14T | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-15T | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-15.9T | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
| MAE43-20T | Nylon 66 (UL) | 94V-2/94V-0 | Natural/Black | 2000 |
